Parameter
| Model | Power (kW) | Weight (kg) | Dimension (m) | Capacity (kg/h) |
|---|---|---|---|---|
| 500 | 95 | 20000 | 25×6×5 | 400–500 |
| 1000 | 195 | 40000 | 35×8×8 | 800–1000 |
Advantages
The combined process of hammer vibration crushing, vibrating screening and air classification realizes the resource recovery of metallic copper and carbon powder from spent lithium battery anode materials.
Hammer vibration crushing effectively peels carbon powder from copper foil in anode materials. Subsequent vibrating screening based on particle size and shape differences achieves primary separation of copper foil and carbon powder.
For crushed particles ranging from 0.125~0.250 mm with low copper grade, air classification enables effective separation of copper and carbon powder. Satisfactory recovery performance can be obtained at an air velocity of 1.00 m/s.

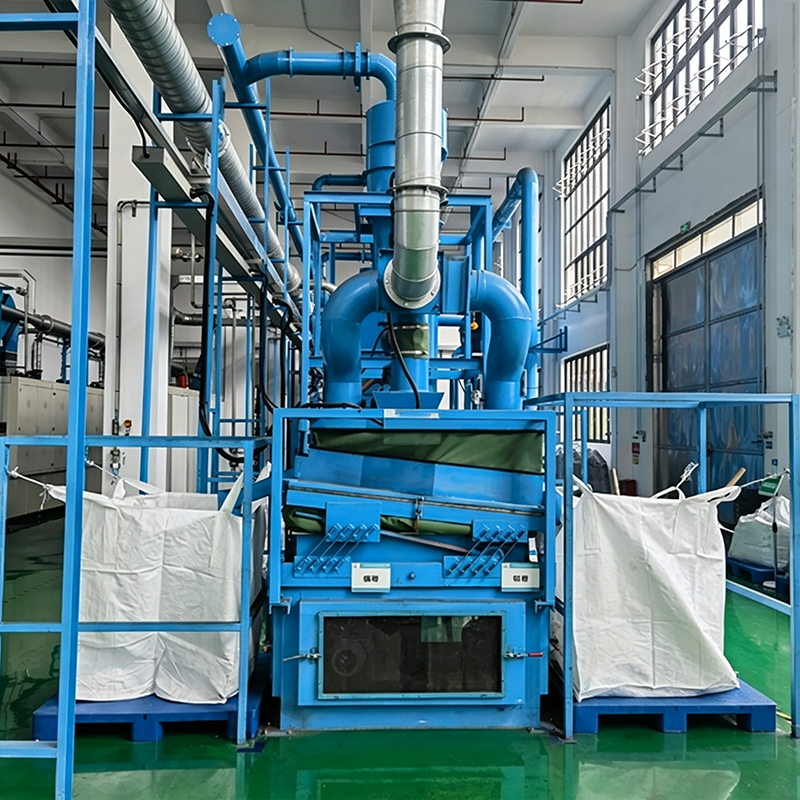

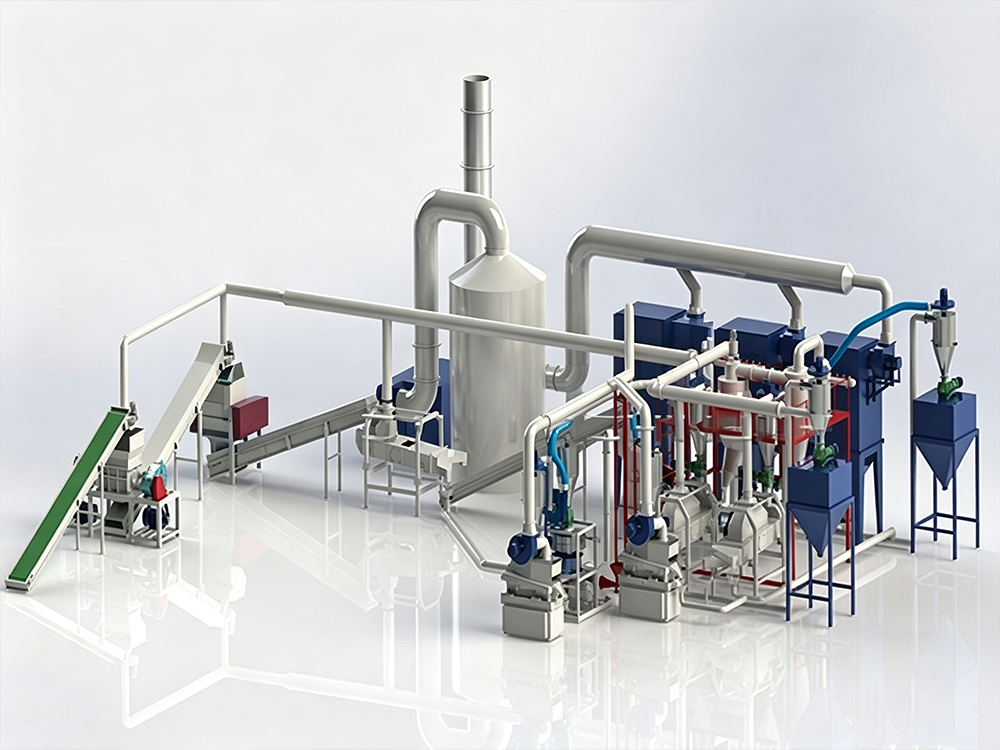

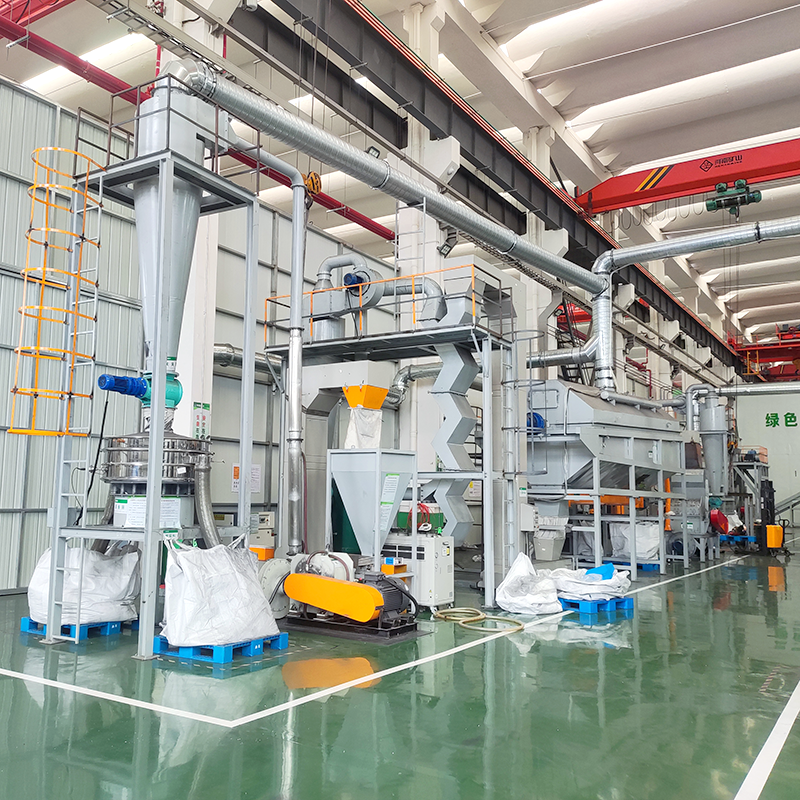

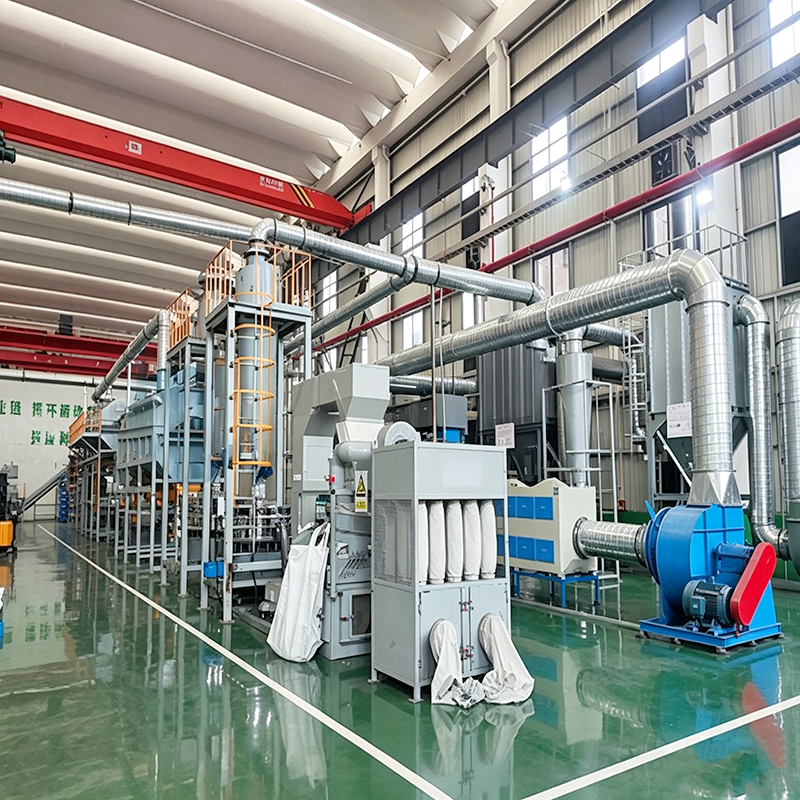

This equipment is mainly applied by lithium-ion battery manufacturers to separate aluminum foil, copper foil and electrode materials from scrapped cathode and anode sheets for recycling. The complete set operates under negative pressure with zero dust leakage, and the separation efficiency reaches over 90%.
